lg interactive panels Dealers Chennai, Tamilnadu, India

Brightness(w/Protection Glass) : 330 cd/m²

Touch Type : IR

Multi Touch Point : Max 20 points / Max 10 writing

Interface : HDMI (3), RGB / Audio In,RS232C In, RJ45,USB 2.0 (3, Front : 2ea, Bottom side: 1ea Only for software update),

USB 3.0 (3), Touch Out(USB2.0,B Type) (2),HDMI (1), Optical Output / Audio Out

Screen Size 86 Panel Technology IPS

Back Light Type Direct Aspect Ratio 16 : 9

Native Resolution 3,840 x 2,160 (UHD) Brightness(Typ., cd/m², w/ Protection Glass) 330

Contrast Ratio 1,100:1 Viewing Angle(H x V) 178 x 178

Response Time 8 ms (G to G) Life Time (Typ.) 30,000 Hrs (Min.)

Operation Hours 16Hr Orientation Landscape

(Input) Video / Audio HDMI (3), RGB / Audio In (Input) External Control RS232C In, RJ45

(Input) USB USB 2.0 (3, Front : 2ea, Bottom side: 1ea Only for software update), USB 3.0 (3), Touch Out(USB2.0,B Type) (2) (Output) Video / Audio HDMI (1), Optical Output / Audio Out

Bezel Color Black Bezel Width(Off Bezel) Top/Right/Left:17.7mm, Bottom:45.7mm

Monitor Dimension (W × H × D) 1,957×1,160×86mm Weight (Head) 67kg

Carton Dimensions(W x H x D) with pallet 2,230×1,499×285mm Packed Weight 109kg

Handle Yes VESA™ Standard Mount Interface 800 x 600

Operation Temperature 0 °C to 40 °C Operation Humidity 10 % to 80 %

Power Supply 100 -240V~, 50/60Hz Power Type Built-In Power

Power Consumption (Typ. / Max.) 365W / 419W

SOUND

Speaker Built in 24W (12W + 12W)

Safety CB / NRTL EMC FCC Class "A" / CE

ErP / Energy Star Yes(EU Only) / No

MEDIA PLAYER COMPATIBILITY

OPS Type Compatible Yes

Basic Power Cord 3 M*1, USB Cable (Type A-Type B) 5 M*1, HDMI Cable 3 M*1, Writing Pen*2pcs, User Manual, QSG, Carton Box, Remote Control

Embedded Writing Software Yes

Touch Type IR Available Object Size for Touch Ø3 mm ?

Response Time 60ms ? (Android) / 100ms ? (Windows) Accuracy 1.5mm

Interface USB 2.0 Protection Glass Thickness 4T (Anti-Glare)

Protection Glass Transmission 87% Operating System Support Windows 7/8/10/WindowsXP/Linux/Mac/Android (WindowsXP/Linux/Mac Support one point touch)

Multi touch point Max 20 points / Max 10 writing

Brightness(w/Protection Glass) : 330 cd/m²

Touch Type : IR

Multi Touch Point : Max 20 points / Max 10 writing

Interface : HDMI (3), RGB / Audio In,RS232C In, RJ45,USB 2.0 (3, Front : 2ea, Bottom side: 1ea Only for software update),

USB 3.0 (3), Touch Out(USB2.0,B Type) (2),HDMI (1), Optical Output / Audio Out

Screen Size 75 Panel Technology IPS

Back Light Type Direct Aspect Ratio 16 : 9

Native Resolution 3,840 x 2,160 (UHD) Brightness(Typ., cd/m², w/ Protection Glass) 330

Contrast Ratio 1,100:1 Viewing Angle(H x V) 178 x 178

Response Time 8 ms (G to G) Life Time (Typ.) 30,000 Hrs (Min.)

Operation Hours 16Hr Orientation Landscape

(Input) Video / Audio HDMI (3), RGB / Audio In (Input) External Control RS232C In, RJ45

(Input) USB USB 2.0 (3, Front : 2ea, Bottom side: 1ea Only for software update), USB 3.0 (3), Touch Out(USB2.0,B Type) (2) (Output) Video / Audio HDMI (1), Optical Output / Audio Out

Bezel Color Black Bezel Width(Off Bezel) Top/Right/Left:17.7mm, Bottom:45.7mm

Monitor Dimension (W × H × D) 1,957×1,160×86mm Weight (Head) 67kg

Carton Dimensions(W x H x D) with pallet 2,230×1,499×285mm Packed Weight 109kg

Handle Yes VESA™ Standard Mount Interface 800 x 600

Operation Temperature 0 °C to 40 °C Operation Humidity 10 % to 80 %

Power Supply 100 -240V~, 50/60Hz Power Type Built-In Power

Power Consumption (Typ. / Max.) 365W / 419W

SOUND

Speaker Built in 24W (12W + 12W)

Safety CB / NRTL EMC FCC Class "A" / CE

ErP / Energy Star Yes(EU Only) / No

MEDIA PLAYER COMPATIBILITY

OPS Type Compatible Yes

Basic Power Cord 3 M*1, USB Cable (Type A-Type B) 5 M*1, HDMI Cable 3 M*1, Writing Pen*2pcs, User Manual, QSG, Carton Box, Remote Control

Embedded Writing Software Yes

Touch Type IR Available Object Size for Touch Ø3 mm ?

Response Time 60ms ? (Android) / 100ms ? (Windows) Accuracy 1.5mm

Interface USB 2.0 Protection Glass Thickness 4T (Anti-Glare)

Protection Glass Transmission 87% Operating System Support Windows 7/8/10/WindowsXP/Linux/Mac/Android (WindowsXP/Linux/Mac Support one point touch)

Multi touch point Max 20 points / Max 10 writing

Brightness(w/Protection Glass) : 330 cd/m²

Touch Type : IR

Multi Touch Point : Max 20 points / Max 10 writing

Interface : HDMI (3), RGB / Audio In,RS232C In, RJ45,USB 2.0 (3, Front : 2ea, Bottom side: 1ea Only for software update),

USB 3.0 (3), Touch Out(USB2.0,B Type) (2),HDMI (1), Optical Output / Audio Out

Screen Size 65 Panel Technology IPS

Back Light Type Direct Aspect Ratio 16 : 9

Native Resolution 3,840 x 2,160 (UHD) Brightness(Typ., cd/m², w/ Protection Glass) 330

Contrast Ratio 1,100:1 Viewing Angle(H x V) 178 x 178

Response Time 8 ms (G to G) Life Time (Typ.) 30,000 Hrs (Min.)

Operation Hours 16Hr Orientation Landscape

(Input) Video / Audio HDMI (3), RGB / Audio In (Input) External Control RS232C In, RJ45

(Input) USB USB 2.0 (3, Front : 2ea, Bottom side: 1ea Only for software update), USB 3.0 (3), Touch Out(USB2.0,B Type) (2) (Output) Video / Audio HDMI (1), Optical Output / Audio Out

Bezel Color Black Bezel Width(Off Bezel) Top/Right/Left:17.7mm, Bottom:45.7mm

Monitor Dimension (W × H × D) 1,957×1,160×86mm Weight (Head) 67kg

Carton Dimensions(W x H x D) with pallet 2,230×1,499×285mm Packed Weight 109kg

Handle Yes VESA™ Standard Mount Interface 800 x 600

Operation Temperature 0 °C to 40 °C Operation Humidity 10 % to 80 %

Power Supply 100 -240V~, 50/60Hz Power Type Built-In Power

Power Consumption (Typ. / Max.) 365W / 419W

SOUND

Speaker Built in 24W (12W + 12W)

Safety CB / NRTL EMC FCC Class "A" / CE

ErP / Energy Star Yes(EU Only) / No

MEDIA PLAYER COMPATIBILITY

OPS Type Compatible Yes

Basic Power Cord 3 M*1, USB Cable (Type A-Type B) 5 M*1, HDMI Cable 3 M*1, Writing Pen*2pcs, User Manual, QSG, Carton Box, Remote Control

Embedded Writing Software Yes

Touch Type IR Available Object Size for Touch Ø3 mm ?

Response Time 60ms ? (Android) / 100ms ? (Windows) Accuracy 1.5mm

Interface USB 2.0 Protection Glass Thickness 4T (Anti-Glare)

Protection Glass Transmission 87% Operating System Support Windows 7/8/10/WindowsXP/Linux/Mac/Android (WindowsXP/Linux/Mac Support one point touch)

Multi touch point Max 20 points / Max 10 writing

Brightness(Typ.) : 350 cd/m²

Touch Type : In-Cell

Multi Touch Point : Active Pen : Max 2 Point

Depth : 86.5 mm

Interface : HDMI (2), DP, DVI-D, USB Type C / Audio-in,RS232C In/Out,USB 2.0 (2), USB Type C(USB2.0), Touch Out(USB2.0,B Type)(2)

Screen Size 218.44cm (86) Panel Technology IPS

Back Light Type Edge Aspect Ratio 16 : 9

Native Resolution 3,840 x 2,160 (UHD) Brightness(Typ., cd/m², w/ Protection Glass) 350

Contrast Ratio 1,000:1(TBD) Viewing Angle (H x V) 178 x 178

Response Time 8 ms(G to G) Life Time (Typ.) 30,000 Hrs (Min.)

Operation Hours 16Hr Orientation Landscape

Video / Audio HDMI (2), DP, DVI-D, USB External Control RS232C In/Out

USB USB 2.0 (2), USB Type C(USB2.0), Touch Out(USB2.0,B Type)(2)

Bezel Color Black Bezel Width (T/L/R/B) set: 28.8mm

Monitor Dimension (W × H × D) 1952.6 x 1164.1 x 86.4 mm Weight (Head) 66.7 kg

Carton Dimensions (W × H × D) 2190 x 1470 x 371 mm Packed Weight 95kg

Handle Yes VESA™ Standard Mount Interface 600 x 400

Operation Temperature 0°C to 40°C Operation Humidity 10 % to 80 %

Power Supply 100-240V~, 50/60Hz Power Type Built-In Power

Power Consumption (Typ. / Max.) 360W / 420W

Speaker Built in(10W/Ch)

Safety CB / NRTL EMC FCC Class "A" / CE / KC

MEDIA PLAYER COMPATIBILITY

OPS Type Compatible Yes Optional (OPS Kit (KT-OPSF))

Basic Remote Controller(include battery 2ea), Power Cord, QSG, HDMI(3M), Regulation Book, Phone to RS232C Gender, Touch Pen(2ea, include battery 2ea), Pen Tip(10ea), Tip Remover(2ea), USB Type-C Cable, Ferrite Core Filter

IDB App Yes

Touch Type In-cell Available Object Size for Touch Ø5 mm ?

Response Time (PC Windows 10) 70ms? Accuracy 1.5mm

Interface USB 2.0 Protection Glass Thickness 1.85T (Anti-Glare)

Protection Glass Transmission 88% Operating Systme Support Win7 professional, Win8.1, Win10

Multi touch point Finger : Max 20 Point (Windows), Finger: Max 10Point (webOS), Active Pen : Max 2 Point

SoC and LG webOS

IDB App for Efficient Collaboration

LG FHD Technology

LG IPS Panel with Wide Viewing Angles and True Color

Auto Signal/Touch Switching

Screen Size 139.7cm (55) Panel Technology IPS

Aspect Ratio 16 : 9 Native Resolution 1,920 x 1,080 (FHD)

Brightness (cd/m²) 450 Viewing Angle (HxV) 178 x 178

Response Time 12ms (G to G BW), 9.0ms (WOT) Surface Treatment Hard coating (3H), Anti-glare treatment of the front polarizer, (Haze 1%(Typ.))

Life Time (Typ.) 50,000Hrs Operation Hours 24Hrs

Orientation Landscape & Portrait

Input HDMI (2), DP, DVI-D, RGB, Audio In, USB 3.0 Output DP, Audio Out

External Control RS232C In/out, RJ45 In, IR Receiver In, Pixer Sensor In

Bezel Color Black Bezel Width 32.7 mm (Even)

Monitor Dimension (W x H x D) 1,278 x 748.8 x 71.4 mm Weight (Head) 28.0 kg

Carton Dimensions (W x H x D) 1,410 x 880 x 207 mm Packed Weight 33kg

VESA™ Standard Mount Interface 300 x 300 mm

Yes Temperature Sensor, Auto Brightness Sensor, Tile Mode (Up to 15x15), Natural Mode @Tile Mode, ISM Method, DPM Select, Energy Saving,

Smart Energy Saving, File Play with USB, PIP/PBP (2), Internal Memory 8GB (System 4GB + Available 4GB), Wi-Fi Built-in (802.11n combo), USB Cloning,

Easy Brightness Control, IDB App. (Whiteboard App.), Fail Over, Mirroring, SoftAP, Beacon, Embedded Template, Built-in Speaker (10W+10W), Crestron Connected**

Operation Temperature 0°C to 40°C Operation Humidity 10% to 80%

Power Type Built-in Power Power Supply 100 -240V~, 50/60Hz

Power Consumption Typ./Max. 100W/115W Power Consumption Smart Energy Saving 70W

Safety UL/cUL/CB/TUV/KC EMC FCC Class "A"/CE/KCC

MEDIA PLAYER COMPATIBILITY

OPS type compatible Yes External Media player Attatchable Yes (MP500/MP700)

Content Management Software SuperSign CMS Control and Monitoring Software SuperSign Link

Basic Remote Controller (2ea batteries included), Power cord, QSG, RGB cable, Regulation book, Phone to RS232C gender, Memory cover Optional

Stand (ST-492T), Media Player, Wall Bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT-OPSA), HDBaseT (EB-B100)

Touch type IR (Scattering) Scan Time 10 ms ?

Interface USB 2.0 Protection Glass Thickness 2.8T (Anti-Glare)

Operating Systme Support Windows 7, Windows 8/8.1/10, Mac OS X (10.7 or later), Android, Linux (kernel 3.9 or later) Multi touch point Max 10 Points

SoC and LG webOS

IDB App for Efficient Collaboration

LG FHD Technology

LG IPS Panel with Wide Viewing Angles and True Color

Auto Signal/Touch Switching

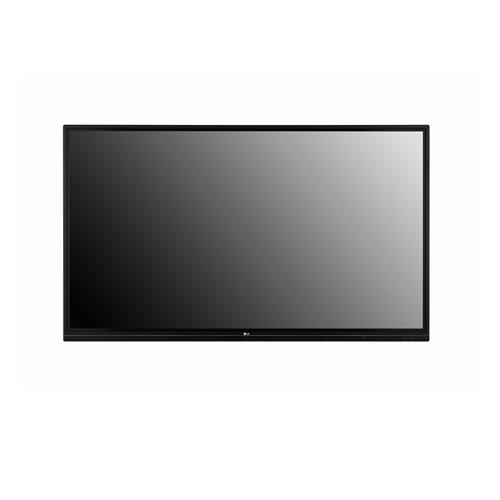

Screen Size 124.46cm (49) Panel Technology IPS

Aspect Ratio 16 : 9 Native Resolution 1,920 x 1,080 (FHD)

Brightness (cd/m²) 450 Viewing Angle (HxV) 178 x 178

Response Time 12ms (G to G BW), 9.0ms (WOT) Surface Treatment Hard coating (3H), Anti-glare treatment of the front polarizer, (Haze 1%(Typ.))

Life Time (Typ.) 50,000Hrs Operation Hours 24Hrs

Orientation Landscape & Portrait

Input HDMI (2), DP, DVI-D, RGB, Audio In, USB 3.0 Output DP, Audio Out

External Control RS232C In/out, RJ45 In, IR Receiver In, Pixer Sensor In

Bezel Color Black Bezel Width 32.7 mm (Even)

Monitor Dimension (W x H x D) 1,278 x 748.8 x 71.4 mm Weight (Head) 28.0 kg

Carton Dimensions (W x H x D) 1,410 x 880 x 207 mm Packed Weight 33kg

VESA Standard Mount Interface 300 x 300 mm

Yes Temperature Sensor, Auto Brightness Sensor, Tile Mode (Up to 15x15), Natural Mode @Tile Mode, ISM Method, DPM Select, Energy Saving,

Smart Energy Saving, File Play with USB, PIP/PBP (2), Internal Memory 8GB (System 4GB + Available 4GB), Wi-Fi Built-in (802.11n combo), USB Cloning,

Easy Brightness Control, IDB App. (Whiteboard App.), Fail Over, Mirroring, SoftAP, Beacon, Embedded Template, Built-in Speaker (10W+10W), Crestron Connected**

Operation Temperature 0°C to 40°C Operation Humidity 10% to 80%

Power Type Built-in Power Power Supply 100 -240V~, 50/60Hz

Power Consumption Typ./Max. 100W/115W Power Consumption Smart Energy Saving 70W

Safety UL/cUL/CB/TUV/KC EMC FCC Class "A"/CE/KCC

MEDIA PLAYER COMPATIBILITY

OPS type compatible Yes External Media player Attatchable Yes (MP500/MP700)

Content Management Software SuperSign CMS Control and Monitoring Software SuperSign Link

Basic Remote Controller (2ea batteries included), Power cord, QSG, RGB cable, Regulation book, Phone to RS232C gender, Memory cover Optional

Stand (ST-492T), Media Player, Wall Bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT-OPSA), HDBaseT (EB-B100)

Touch type IR (Scattering) Scan Time 10 ms ?

Interface USB 2.0 Protection Glass Thickness 2.8T (Anti-Glare)

Operating Systme Support Windows 7, Windows 8/8.1/10, Mac OS X (10.7 or later), Android, Linux (kernel 3.9 or later) Multi touch point Max 10 Points

SoC and LG webOS

IDB App for Efficient Collaboration

LG FHD Technology

LG IPS Panel with Wide Viewing Angles and True Color

Auto Signal/Touch Switching

Screen Size 109.22cm (43) Panel Technology IPS

Aspect Ratio 16 : 9 Native Resolution 1,920 x 1,080 (FHD)

Brightness (cd/m²) 450 Viewing Angle (HxV) 178 x 178

Response Time 12ms (G to G BW), 9.0ms (WOT) Surface Treatment Hard coating (3H), Anti-glare treatment of the front polarizer, (Haze 1%(Typ.))

Life Time (Typ.) 50,000Hrs Operation Hours 24Hrs

Orientation Landscape & Portrait

Input HDMI (2), DP, DVI-D, RGB, Audio In, USB 3.0 Output DP, Audio Out

External Control RS232C In/out, RJ45 In, IR Receiver In, Pixer Sensor In

Bezel Color Black Bezel Width 32.7 mm (Even)

Monitor Dimension (W x H x D) 1,278 x 748.8 x 71.4 mm Weight (Head) 28.0 kg

Carton Dimensions (W x H x D) 1,410 x 880 x 207 mm Packed Weight 33kg

VESA™ Standard Mount Interface 300 x 300 mm

Yes Temperature Sensor, Auto Brightness Sensor, Tile Mode (Up to 15x15), Natural Mode @Tile Mode, ISM Method, DPM Select, Energy Saving,

Smart Energy Saving, File Play with USB, PIP/PBP (2), Internal Memory 8GB (System 4GB + Available 4GB), Wi-Fi Built-in (802.11n combo), USB Cloning,

Easy Brightness Control, IDB App. (Whiteboard App.), Fail Over, Mirroring, SoftAP, Beacon, Embedded Template, Built-in Speaker (10W+10W), Crestron Connected**

Operation Temperature 0°C to 40°C Operation Humidity 10% to 80%

Power Type Built-in Power Power Supply 100 -240V~, 50/60Hz

Power Consumption Typ./Max. 100W/115W Power Consumption Smart Energy Saving 70W

Safety UL/cUL/CB/TUV/KC EMC FCC Class "A"/CE/KCC

MEDIA PLAYER COMPATIBILITY

OPS type compatible Yes External Media player Attatchable Yes (MP500/MP700)

Content Management Software SuperSign CMS Control and Monitoring Software SuperSign Link

Basic Remote Controller (2ea batteries included), Power cord, QSG, RGB cable, Regulation book, Phone to RS232C gender, Memory cover Optional

Stand (ST-492T), Media Player, Wall Bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT-OPSA), HDBaseT (EB-B100)

Touch type IR (Scattering) Scan Time 10 ms ?

Interface USB 2.0 Protection Glass Thickness 2.8T (Anti-Glare)

Operating Systme Support Windows 7, Windows 8/8.1/10, Mac OS X (10.7 or later), Android, Linux (kernel 3.9 or later) Multi touch point Max 10 Points

SoC and LG webOS

IDB App for Efficient Collaboration

LG FHD Technology

LG IPS Panel with Wide Viewing Angles and True Color

Auto Signal/Touch Switching

Screen Size 81.28Cm (32) Panel Technology IPS

Aspect Ratio 16 : 9 Native Resolution 1,920 x 1,080 (FHD)

Brightness (cd/m²) 450 Viewing Angle (HxV) 178 x 178

Response Time 12ms (G to G BW), 9.0ms (WOT) Surface Treatment Hard coating (3H), Anti-glare treatment of the front polarizer, (Haze 1%(Typ.))

Life Time (Typ.) 50,000Hrs Operation Hours 24Hrs

Orientation Landscape & Portrait

Input HDMI (2), DP, DVI-D, RGB, Audio In, USB 3.0 Output DP, Audio Out

External Control RS232C In/out, RJ45 In, IR Receiver In, Pixer Sensor In

Bezel Color Black Bezel Width 32.7 mm (Even)

Monitor Dimension (W x H x D) 1,278 x 748.8 x 71.4 mm Weight (Head) 28.0 kg

Carton Dimensions (W x H x D) 1,410 x 880 x 207 mm Packed Weight 33kg

VESA™ Standard Mount Interface 300 x 300 mm

Yes Temperature Sensor, Auto Brightness Sensor, Tile Mode (Up to 15x15), Natural Mode @Tile Mode, ISM Method, DPM Select, Energy Saving,

Smart Energy Saving, File Play with USB, PIP/PBP (2), Internal Memory 8GB (System 4GB + Available 4GB), Wi-Fi Built-in (802.11n combo), USB Cloning,

Easy Brightness Control, IDB App. (Whiteboard App.), Fail Over, Mirroring, SoftAP, Beacon, Embedded Template, Built-in Speaker (10W+10W), Crestron Connected**

Operation Temperature 0°C to 40°C Operation Humidity 10% to 80%

Power Type Built-in Power Power Supply 100 -240V~, 50/60Hz

Power Consumption Typ./Max. 100W/115W Power Consumption Smart Energy Saving 70W

Safety UL/cUL/CB/TUV/KC EMC FCC Class "A"/CE/KCC

MEDIA PLAYER COMPATIBILITY

OPS type compatible Yes External Media player Attatchable Yes (MP500/MP700)

Content Management Software SuperSign CMS Control and Monitoring Software SuperSign Link

Basic Remote Controller (2ea batteries included), Power cord, QSG, RGB cable, Regulation book, Phone to RS232C gender, Memory cover Optional

Stand (ST-492T), Media Player, Wall Bracket (LSW350B), VESA Adapter (AM-B330S), OPS Kit (KT-OPSA), HDBaseT (EB-B100)

Touch type IR (Scattering) Scan Time 10 ms ?

Interface USB 2.0 Protection Glass Thickness 2.8T (Anti-Glare)

Operating Systme Support Windows 7, Windows 8/8.1/10, Mac OS X (10.7 or later), Android, Linux (kernel 3.9 or later) Multi touch point Max 10 Points

Brightness(Typ.): 410 cd/m²

Touch Type: InGlass™

Multi touch point: Max 20 Point

Interface: HDMI (3), DP, DVI, RGB, RS232C, RJ45, USB (2), OPS USB, Touch USB (2), Wi-fi Built-in

Screen Size 218.44cm (86) Brightness(Module, Typ., cd/m²) 410

Native Resolution 3840 x 2160 (UHD)

Input HDMI (3), DP, DVI-D, RGB, Audio, USB 3.0, USB 2.0, OPS USB 2.0 Output Touch USB 2.0 (2)

Bezel Width 50.7 mm (T/L/R), 62.2 mm (B) Monitor Dimension (W x H x D) 2,026.9 x 1,180.3 x 92.9 mm

Weight (Head) 85.8 kg Carton Dimensions (W x H x D) 2,190 × 1,470 × 371 mm

Packed Weight 114.6 kg VESA™ Standard Mount Interface 600 x 400 mm

Operation Temperature 0°C to 40°C Operation Humidity 10 % to 80 %

Content Management Software SuperSign Premium Control and Monitoring Software SuperSign Link

Basic Remote Controller (include battery 2ea), Power Cord, QSG, HDMI (3M), Regulation Book, Phone to RS232C Gender, Touch Pen (2ea), Eyebolt (2ea) Optional

OPS Kit (KT-OPSA)

Touch type InGlass™ Available object size for touch more than Ø 3 mm

Accuracy 2 mm Interface USB 2.0

Protection Glass Thickness 4T (Anti-Glare) Multi touch point Max 20 Point

Brightness: 500 cd/?

Touch Type: P-Cap(Ag Metal Mesh)

Touch Point: Max. 40 points

Interface: HDMI (3), DP, DVI, RGB, RS232C, RJ45, USB (2), OPS USB, Touch USB (2), Wi-Fi Built-in

Screen Size 75” Native Resolution 3,840 x 2,160 (UHD)

Brightness (Module, cd/?) 500

Input HDMI (3), DP, DVI-D, RGB, Audio in, USB 3.0, USB 2.0, OPS USB 2.0 Output Touch USB 2.0 (2)

External Control RS232C in/out, RJ45 in

Bezel Width 41.6 mm(T/L/R/B) Monitor Dimension (W x H x D) 1,732.8 x 1011.1 x 69.7 mm (w/o Handle)

Weight (Head) 74.5 kg Carton Dimensions (W x H x D) 1,870 x 1,264 x 285 mm(with pallet)

Packed Weight 94 kg VESA™ Standard Mount Interface 600 x 400 mm

Operation Temperature 0°C to 40°C Operation Humidity 10 % to 80 %

Typ. = 240 W Smart Energy Saving = 170 W

Safety UL / cUL / CB / TUV / KC EMC FCC Class “A” / CE / KCC

Content Management Software SuperSign Premium Control and Monitoring Software SuperSign Link

Basic Remote Controller (include battery 2ea), Power Cord, QSG, HDMI (3M), Regulation Book, Phone to RS232C Gender, Touch Pen (2ea), Touch Pen Tip (1ea) Optional OPS Kit (KT-OPSA), Wall Mount(LSW640A/B)

Touch type P-Cap(Ag Metal Mesh) Available object size for touch more than Ø 6 mm

Accuracy 2 mm Interface USB 2.0

Protection Glass Thickness 4T (Anti-Glare) Multi touch point Max. 40 Points

Brightness: 500 cd/?

Touch Type: P-Cap(Ag Metal Mesh)

Touch Point: Max. 40 points

Interface: HDMI (3), DP, DVI, RGB, RS232C, RJ45, USB (2), OPS USB, Touch USB (2), Wi-Fi Built-in

Screen Size 65” Native Resolution 3,840 x 2,160 (UHD)

Brightness (Module, cd/?) 500

Input HDMI (3), DP, DVI-D, RGB, Audio in, USB 3.0, USB 2.0, OPS USB 2.0 Output Touch USB 2.0 (2)

External Control RS232C in/out, RJ45 in

Bezel Width 41.6 mm(T/L/R/B) Monitor Dimension (W x H x D) 1,732.8 x 1011.1 x 69.7 mm (w/o Handle)

Weight (Head) 74.5 kg Carton Dimensions (W x H x D) 1,870 x 1,264 x 285 mm(with pallet)

Packed Weight 94 kg VESA™ Standard Mount Interface 600 x 400 mm

Operation Temperature 0°C to 40°C Operation Humidity 10 % to 80 %

POWER CONSUMPTION

Typ. = 240 W Smart Energy Saving = 170 W

Safety UL / cUL / CB / TUV / KC EMC FCC Class “A” / CE / KCC

Content Management Software SuperSign Premium Control and Monitoring Software SuperSign Link

Basic Remote Controller (include battery 2ea), Power Cord, QSG, HDMI (3M), Regulation Book, Phone to RS232C Gender, Touch Pen (2ea), Touch Pen Tip (1ea) Optional OPS Kit (KT-OPSA), Wall Mount(LSW640A/B)

Touch type P-Cap(Ag Metal Mesh) Available object size for touch more than Ø 6 mm

Accuracy 2 mm Interface USB 2.0

Protection Glass Thickness 4T (Anti-Glare) Multi touch point Max. 40 Points

Brightness: 500 cd/?

Touch Type: P-Cap(Ag Metal Mesh)

Touch Point: Max. 40 points

Interface: HDMI (3), DP, DVI, RGB, RS232C, RJ45, USB (2), OPS USB, Touch USB (2), Wi-Fi Built-in

Screen Size 55” Native Resolution 3,840 x 2,160 (UHD)

Brightness (Module, cd/?) 500

Input HDMI (3), DP, DVI-D, RGB, Audio in, USB 3.0, USB 2.0, OPS USB 2.0 Output Touch USB 2.0 (2)

External Control RS232C in/out, RJ45 in

Bezel Width 41.6 mm(T/L/R/B) Monitor Dimension (W x H x D) 1,732.8 x 1011.1 x 69.7 mm (w/o Handle)

Weight (Head) 74.5 kg Carton Dimensions (W x H x D) 1,870 x 1,264 x 285 mm(with pallet)

Packed Weight 94 kg VESA™ Standard Mount Interface 600 x 400 mm

Operation Temperature 0°C to 40°C Operation Humidity 10 % to 80 %

Typ. = 240 W Smart Energy Saving = 170 W

Safety UL / cUL / CB / TUV / KC EMC FCC Class “A” / CE / KCC

Content Management Software SuperSign Premium Control and Monitoring Software SuperSign Link

Basic Remote Controller (include battery 2ea), Power Cord, QSG, HDMI (3M), Regulation Book, Phone to RS232C Gender, Touch Pen (2ea),

Touch Pen Tip (1ea) Optional OPS Kit (KT-OPSA), Wall Mount(LSW640A/B)

Touch type P-Cap(Ag Metal Mesh) Available object size for touch more than Ø 6 mm

Accuracy 2 mm Interface USB 2.0

Protection Glass Thickness 4T (Anti-Glare) Multi touch point Max. 40 Points

Windows XP (1Point) / Windows 7 (10 Point)

Protection Glass

Anti-Glare

IWB S/W

Screen Size 165.10cm (65) Resolution 3,840 x 2,160 (UHD)

Brightness 350nits Back Light Type Direct

HDMI Yes (3) DP No

DVI-D No Analog (RGB) Yes (1)

Analog (Component) No External Control (RS232C IN) Yes (1)

Audio Yes (1) External Control (LAN) Yes (1)

External Control (IR/Light sensor) X (Internal) External Control (Pixel Sensor) No

External Control (Pentray Control) Yes (1) USB USB 3.0 O(3) USB 2.0 O(3) (Front : 2ea, Bottom side *1 Only for software update),

Touch Out (USB 2.0, B Type) O(2)

CONNECTIVITY - OUTPUT

HDMI Yes (1) Audio Out Yes (1)

External Coaxial/Optical Output - O(1) External Control (RS232C OUT) No

Power Consumption (Typ. / Max.) 145W / 275W

Safety CB / NRTL ErP / Energy Star Yes(EU Only) / No

External Media player Attatchable No

SuperSign-w lite No SuperSign-c No

Basic Power Cord, Remote Controller (include battery 2ea ), IR/Light sensor receiver, USB 2.0 Cable, HDMI 2.0 Cable, DisplayPort Cable, Cable Tie (2ea),

Touch Pen (2ea), PenTray (1ea), Eye-Bolt Assy (2ea), Screw Package, ESG Optional Media Player: MP700/MP500, External Speaker: SP-2100, Pen Tray: KT-WT1 (TBD)
